Note: These pictures are intended as a guide, this is a complicated install and should
only be performed if you feel competent enough.
 |
Undo drivers glovebox cover. |
 |
Remove Fusebox cover. |
 |
Slot switch holder into cubby hole above fusebox. |
 |
Mark two holes. |
 |
Drill the two marked holes with a 3.5mm drill bit and a centre
hole with a 12mm drill bit. |
 |
Feed the wiring loom from the footwell through the 12mm hole just
drilled. |
 |
Attach the wiring clip to the wires in the order described. |
 |
Now push the grey socket into cavity C591 as indicated. |
 |
Secure connector as shown. |
 |
Attach connector as shown. |
 |
Use three tie wraps to secure connector. |
 |
Pull wire through front of switch holder. |
 |
Attach switch to connector and secure switch holder with two
screws. |
 |
Attach the three blank switches to the switch holder. |
 |
Fit switch fascia and secure with screw. |
 |
Using three tie wraps secure wiring as shown. |
 |
Replace fusebox cover. |
 |
Close glovebox cover. |
 |
Feed two wires indicated behind centre fascia and fan assembly as
shown. |
 |

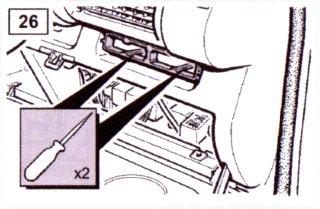

Attach connector to wires. |
 |
Attach two connectors. |
 |
Secure wire with clips as shown. |
