Freelander - Fitting Driving Lamps (STC53082)
Fitting Driving Lamps (STC53082)
This is also listed under other part numbers depending on the VIN of the vehicle.
To YA 999999 - STC7906, From 1A 000001 to 1A 999999 - STC50472, STC 50483, STC50484, From 2A 000001 - STC53082, STC53083, STC53137.
Difference Part No.s depending on Model Year, RHD or LHD, and Fog or Driving Lights.
Note: These pictures are intended as a guide, this is a complicated install and should only be performed if you feel competent enough.
 |
Part No. STC53082 - Cost £175.00 ex VAT |
 |
Parts included in kit. Note differences between LHD and RHD. |
 |
Tools needed |
 |
Firstly lift the bonnet of the Freelander. |
 |
Detach the earth lead from the battery. |
 |
Detach the positive lead from the battery. |
 |
Remove the A frame (if fitted). |
 |
Under each front wing remove the panel that allows access behind inner wing. |
 |
Undo the retaining bolt, repeating on other side. |
 |
Undo the two screws as indicated, again repeating on other side. |
 |
Undo two screws under front of bumper, just in front of the wheel, and repeat for other side. |
 |
Remove the two screws in the middle of the front bumper. |
 |
Undo three retaining screws under lower grill as indicated. |
 |

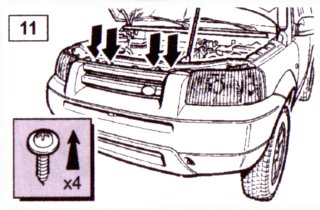

Undo four screws at the top of the bumper as indicated. |
 |

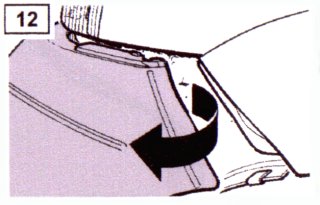

Unhook the bumper at both sides were it joins the wing. |
 |
Remove the bumper completely and place on soft surface to prevent being scratched. |
 |

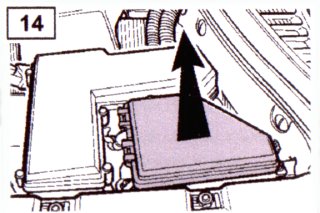

Remove fuse box cover. |
 |
Undo two 10mm bolts. |
 |
And three 10mm nuts to remove the fusebox. |
 |
Trace cable to bulkhead to find grommet. |
 |
Snip off end of grommet as indicated. |
 |
Attach two ends of the engine bay wiring loom to a piece of stiff wire with some insulating tape. |
 |
And push through grommet |
 |
Bring wires into passenger footwell. Note picture shows LHD car, and is incorrect. |
 |
Attach plug to wires. |
